Collimator

The collimator can change the scattered light into a parallel light (Gaussian beam).



Four styles, multiple choices

XSQ1

Lead leaf driving mode: Manual
Drive motor: None
Filter driving mode: Built-in, manual dial
Connection with tube: Flange plate+ Spring wave beads
Measuring tape: Yes
Laser ranging module: None
Inputpower:AC24V/DC24V
Camera: None
Light field dimension detection: Potentiometer
Display screen: None
Light field dimension display(mm): Screen display,>430X430 in the case of SID=100CM Sizedimensions(mm):274x189x172
Weight: 7±0.5kg

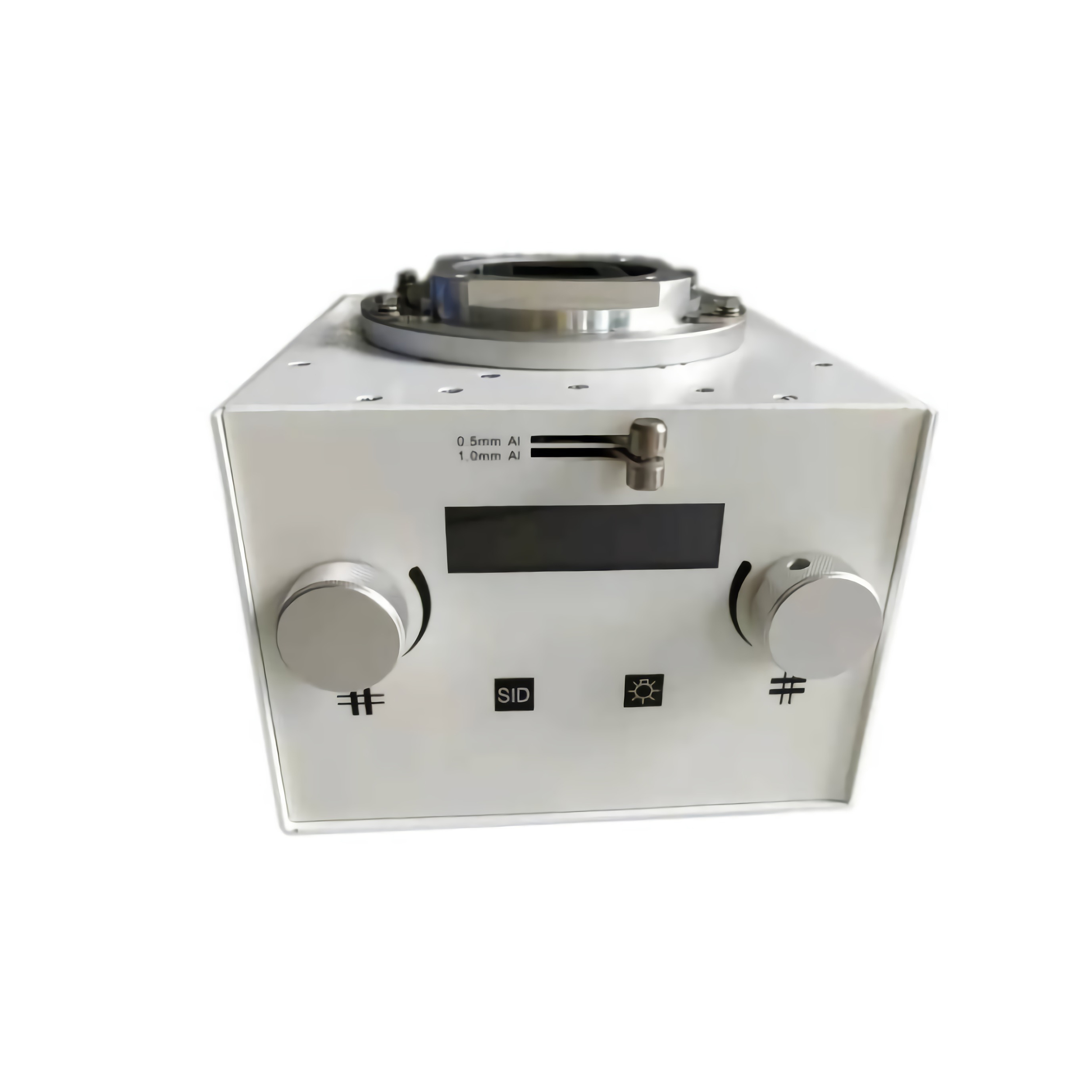

XSQ2/XSQ3

Lead leaf driving mode:Manual/electric
Drive motor: None/DC gear motor + Clutch
Filter driving mode Built-in, manual dial
Connection with tube: Flange plate+Spring wave beads
Measuring tape: Yes
Laser ranging module:None/Optional
Input power:AC24V/DC24V
Camera: Optional
Light field dimension detection: Potentiometer
Display screen: 2.7-inch OLED
Light field dimension display(mm):
Screen display>430x430 in the case ofSID=100CM
Sizedimensions(mm):274x189x172
Weight: 7.5+0.5kg/8±0.5kg

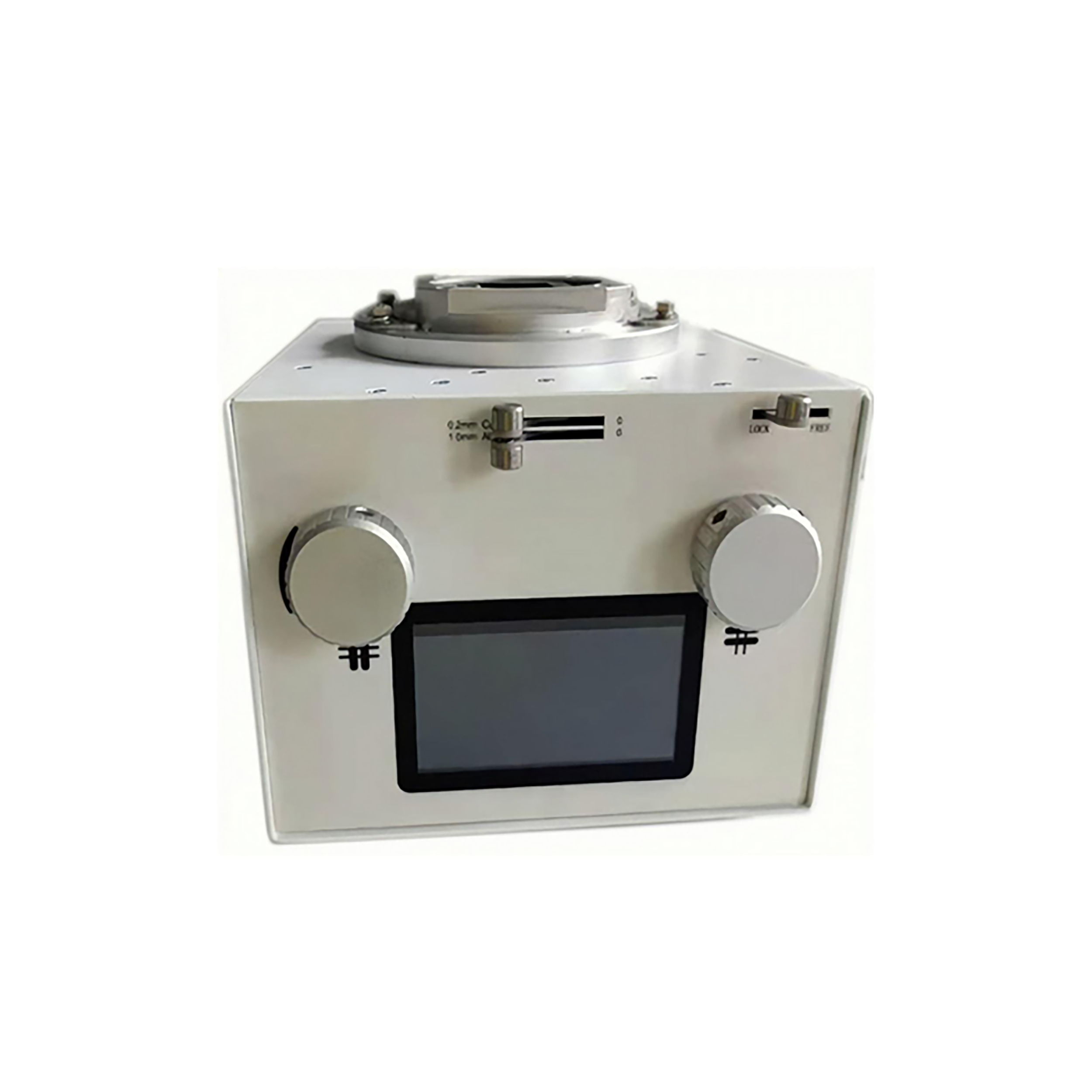

XSQ4/XSQ5

Lead leaf driving mode:Manual/electric
Drive motor: None/DC gear motor+ Clutch
Filter driving mode: Built-in, manual dial
Connection with tube:Flange plate+Buckle structure
Measuring tape: Yes
Laser ranging module: None/Optional
Input power:AC24V/DC24V
Camera: Optional
Light field dimension detection: Potentiometer
Display screen: 4.3-inch touch screen
Light field dimension display(mm): Screen display>430x430 in the case of SID=100CM Sizedimensions(mm):280x205x172
Weight:8.5±0.5kg/9±0.5kg

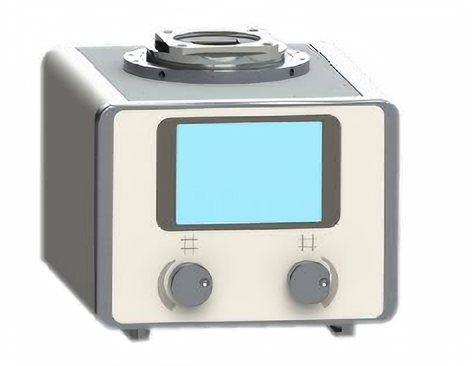

XSQ6


Lead leaf driving mode: Manual and electric integration
Drive motor: Stepping motor, encoder
Filter driving mode: Built-in, stepping motor drive
Connection with tube: Flange plate+Card clamping
Measuring tape: Yes
Laser ranging module: Optional
Input power:AC24V/DC24V
Camera: Standard
Light field dimension detection: Encoder
Display screen: 5-inch touch screen
Light field dimension display(mm): Screen display>430x430 in the case of SID=100CM Sizedimensions(mm): 287x230x190
Weight: 9.5±0.5kg
