High Voltage Power Supply(HVPS)


High voltage generator, also known as DC high voltage generator, is the traditional name of high voltage power supply, which is mainly used for insulation and leakage detection. At present, there is no strict difference between high voltage power supply and high voltage generator.

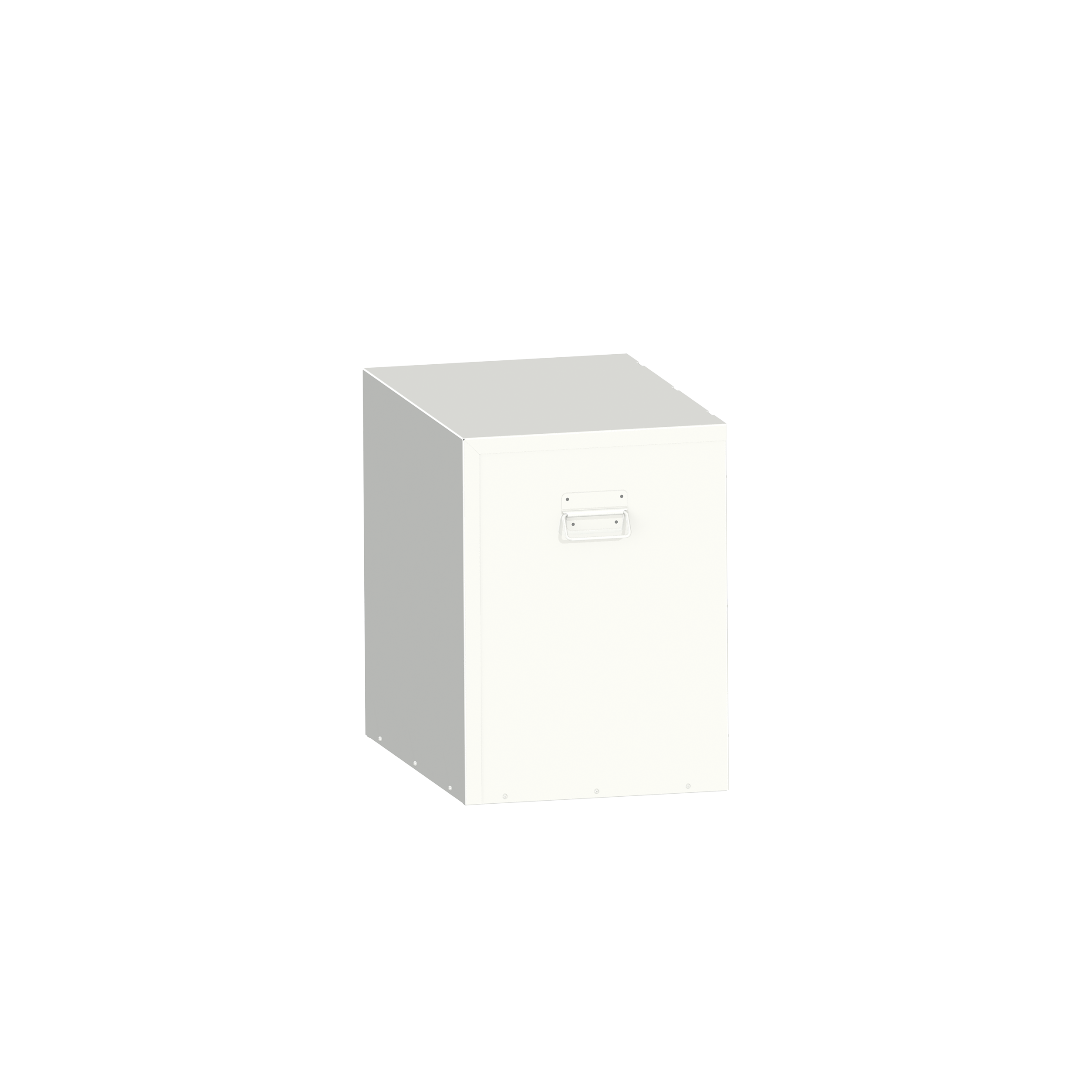

380V static generator

Static: 50kW/ 65kW/ 50kW/ 65kW
Voltage: 380V

Table of Contents: Static

Power: 32kW/ 50kW/ 65kW/ 80kW

kV range: 40-150kV

mA range: 10-400mA/ 10-650mA/ 10-800mA/ 10-1000mA

ms range and accuracy: 1ms-10000ms, 5%

mAs range and accuracy:
0.5-400mAs, 10%/ 0.5-650mAs, 10%/ 0.5-1000mAs, 10%/ 0.5-1000mAs, 10%

Operating frequency: 60kHz-250kHz

kV ripple: ±5% or ≤5kV

AEC: Optional

Size dimensions: 588mm×405mm×554mm

220V static/dynamic generator

Static: 50kW/ 65kW; Dynamic: 50kW/ 65kW

Voltage: 220V

Table of Contents: Static/dynamic

Power: Static: 50kW/ 65kW; Dynamic: 50kW/ 65kW

kV range: 40-150kV

mA range:
Static: 10-650mA/ 10-800mA;
Dynamic: 10-650mA, Fluoroscopy: 0.5-5mA/ 0-800mA, Fluoroscopy: 0.5-5m

ms range and accuracy: 1ms-10000ms, 5%

mAs range and accuracy:
Static: 0.5-200mAs, 10%/ 0.5-320mAs, 10%
Dynamic: 0.5-200mAs, 10%/ 0.5-320mAs, 10%

Operating frequency: 60kHz-250kHz

kV ripple: ±5% or ≤5kV

AEC: Optional

Size dimensions: 709mm×411mm×570mm

Dynamic: 50kW/ 65kW/ 50kW
Voltage: 380V

Table of Contents: Dynamic

Power: 50kW/ 65kW/ 80kW

kV range: 40-150kV

mA range: 10-650mA, Fluoroscopy: 0.5-5mA;
0-800mA, Fluoroscopy: 0.5-5mA;
0-1000mA, Fluoroscopy: 0.5-5mA.

ms range and accuracy: 1ms-10000ms, 5%

mAs range and accuracy: 0.3-1000mAs, 10%

Operating frequency: 60kHz-250kHz

kV ripple: ±5% or ≤5kV

AEC: Optional

Size dimensions: 474mm×411mm×840mm
