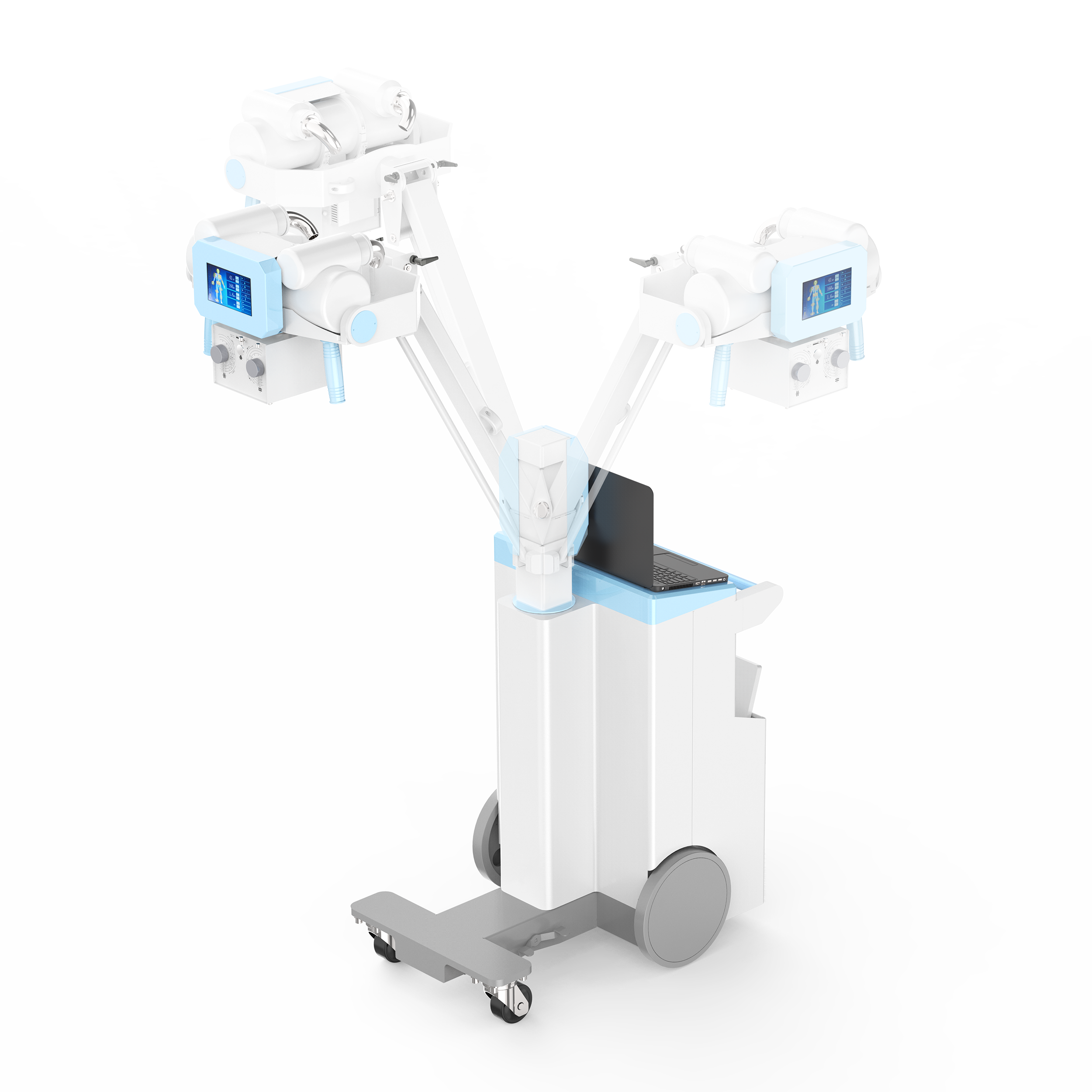

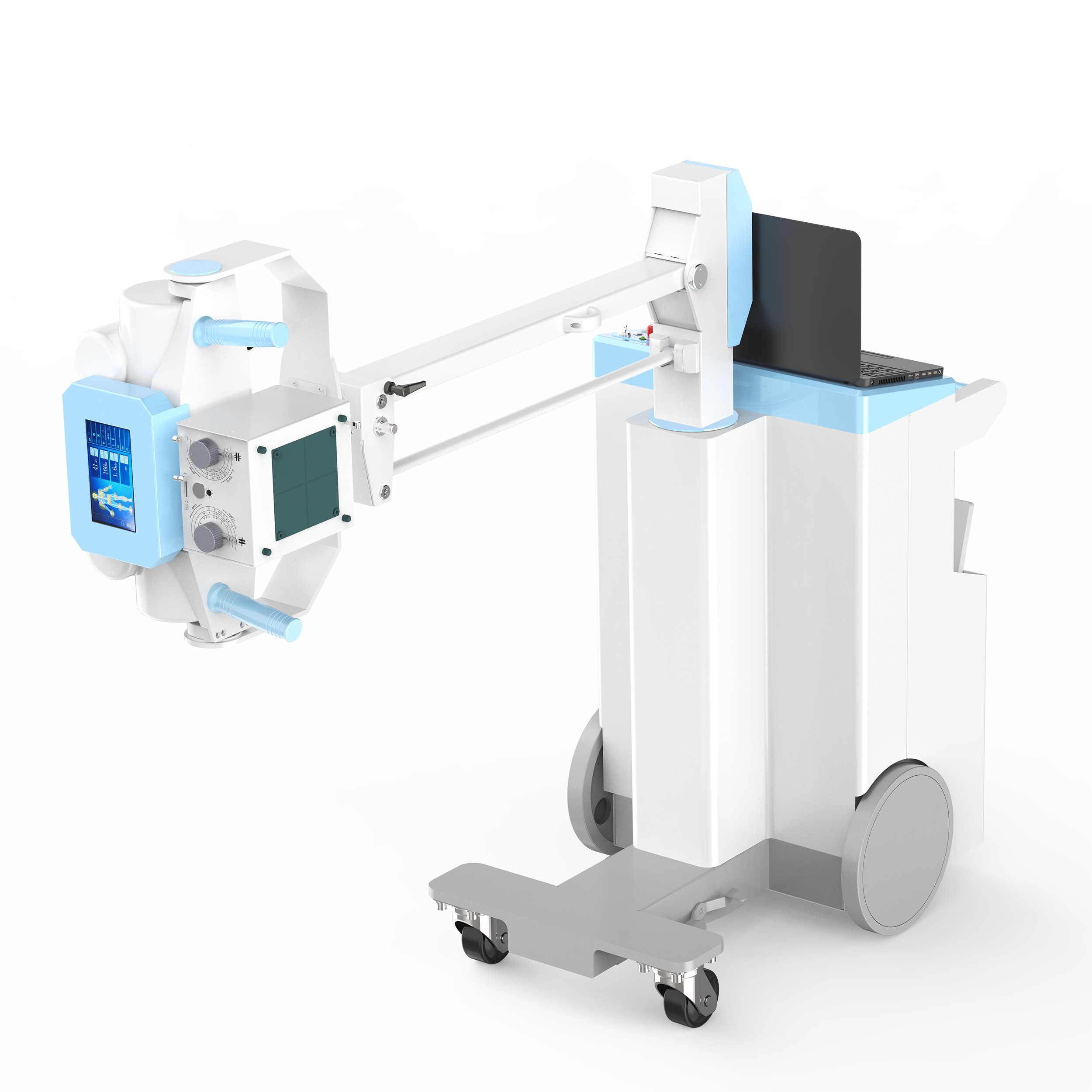

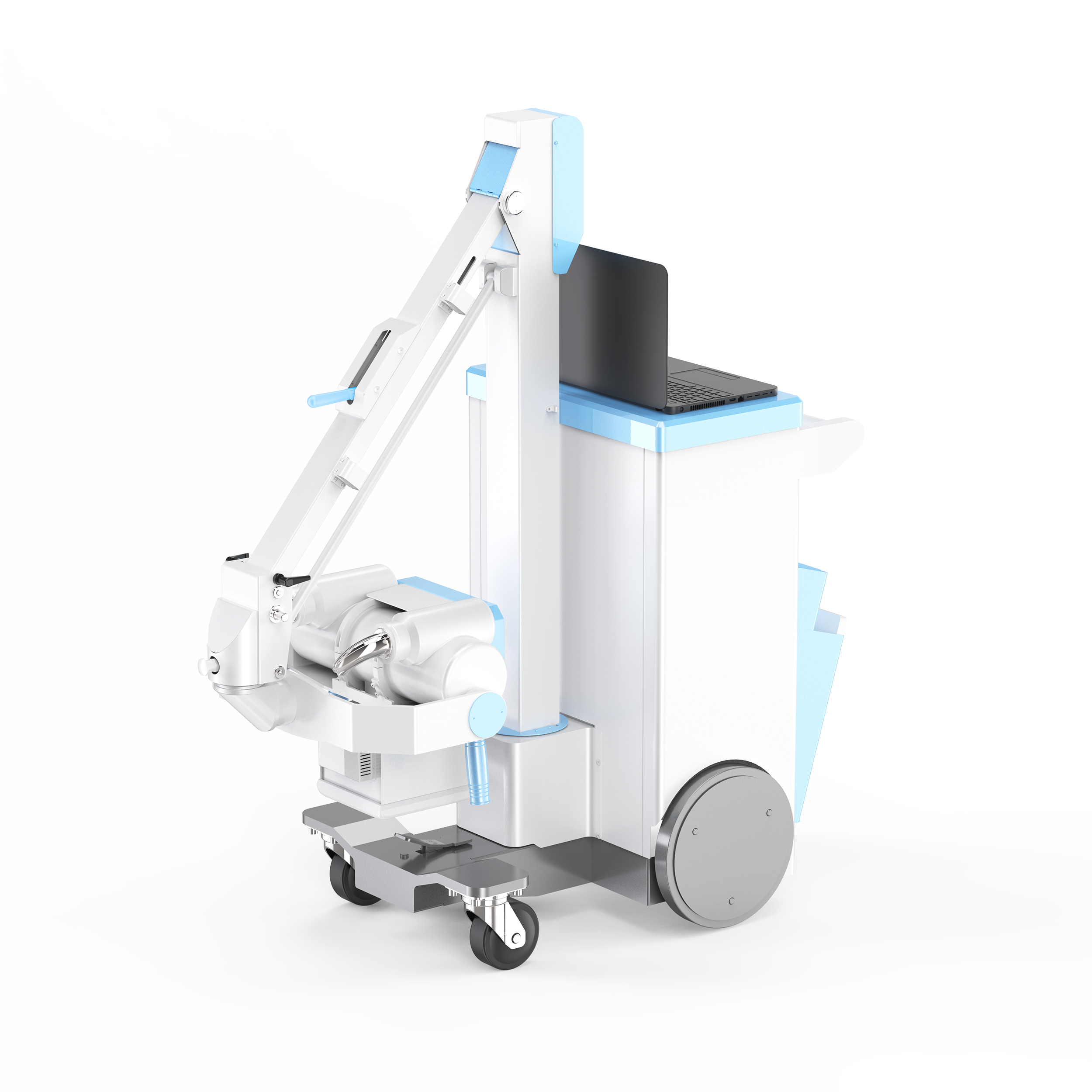

Mobile X-ray

Equipped with high anode capacity of X-ray tube and large output power of HF generator can capture clearer images.

kV range: 40~150kV
mA range: 10~400mA
Input power: 2kVA
Max output power: 32kW







 Flexible Movement, Easy Positioning

Fuselage size: 550mm × 1300mm × 1200mm Column lifting: 500mm

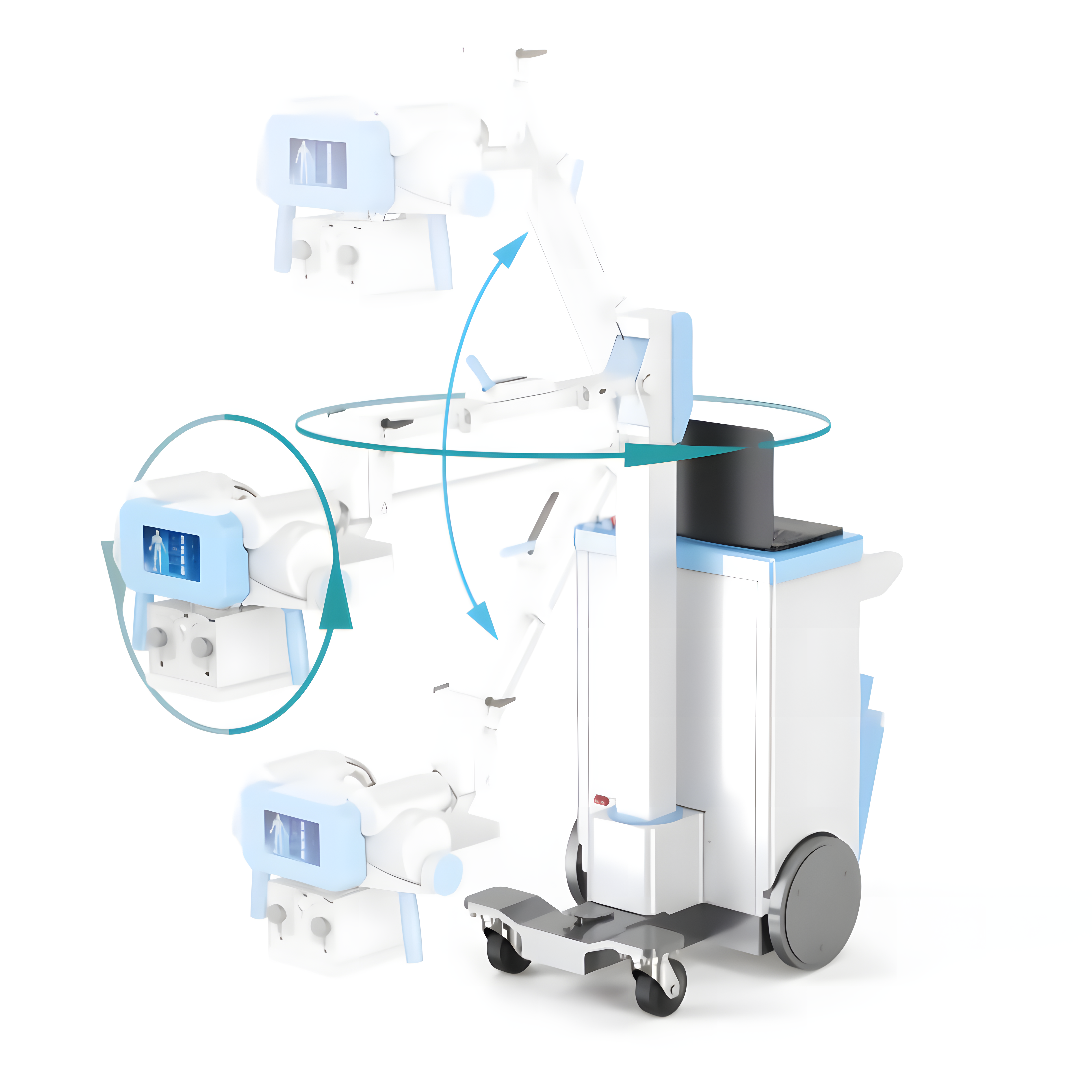

 Collimator Rotation Range along the vertical axis: -15° ~ +90°
Colimator Rotation Range along the horizontal axis: -90° ~ +90°

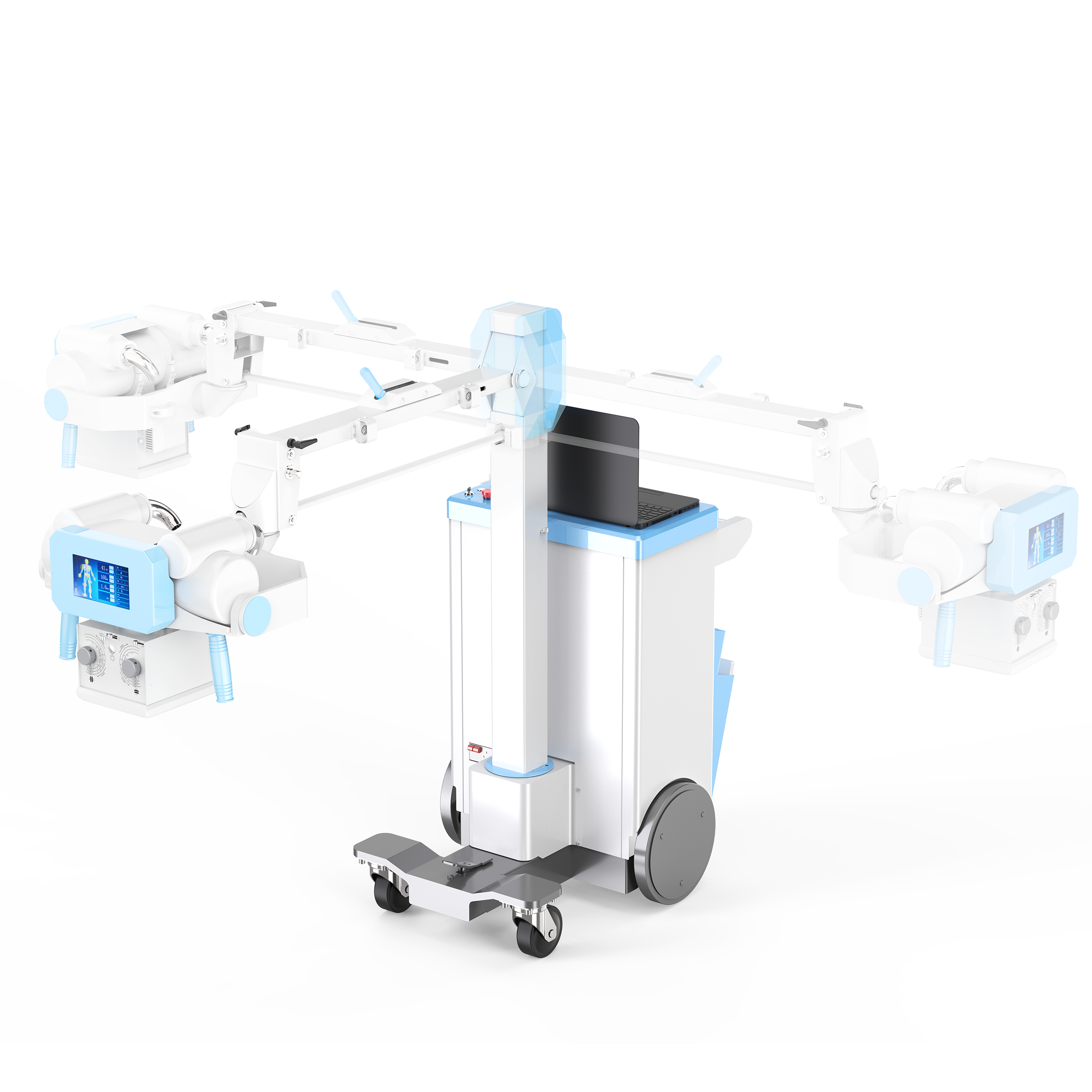

Column Rotation Range along the vertical avis: -90° ~ +90°




Super long endurance, Various operations

Rechargeable Lithium battery built: Battery built for 300 exposures at full charge, Full charging time 5 hours.

Multiple configuration options to meet diverse clinical applications: Optional wireless FPD, and workstation.

Optional Features: Built-in lithium battery, Laptop, Wireless FPD
